Solar System Controller SR510

Harness the Power of the Sun with Precision Control

Welcome to a smarter way to manage your solar water heating. Our cutting-edge Solar Water Heater Controller is designed to bring efficiency, convenience, and control right to your fingertips. With innovative features tailored for optimal performance, this is more than just a gadget—it's a vital companion for your eco-friendly lifestyle.

Quick Read: What's the difference between the SR510 and the SR868C8?

Why Choose Our Controller?

• Real-Time Monitoring: Keep a close eye on your water temperature and levels with live updates, ensuring your system is always running at its best.
• Customisable Settings: Whether it's a chilly morning or a hot day, set your preferred temperature and water levels with ease, and let our controller do the rest.
• Automatic Adjustments: Say goodbye to manual checks. Our intelligent controller steps in to refill water levels and maintain temperature, even when you're not around.
• All-Weather Ready: Designed to withstand the elements, our controller ensures your pipes stay protected in winter, reducing the risk of freezing and damage.
• Energy Efficient: By optimising water heating and usage, you’ll not only enjoy the perfect shower every time but also save on energy bills.

In the box, you'll find everything you need to get started, including a comprehensive installation guide. Whether you’re a seasoned eco-warrior or just beginning your sustainable journey, our Solar Water Heater Controller is the upgrade your system deserves.

Technical Data

• Dimensions: 210mm x 145mm x 50mm.
• Power supply: AC 230V $\pm$10%.
• Max. self consumption: <3W.
• Accuracy of temperature measuring: $\pm$2°C.
• Range of temperature measuring: 0 $\sim$ 99°C.
• Available power of controlled pump, water loading pump and self-heating cable: <800W.
• Available power of electrical booster: $\le$ 1500W
• Electromagnetic valve: DC 12V, AC220V, selectable between one pressurised and the other un-pressurised.
• Pressure of pressurised valve: 0.02MPa $\sim$ 0.8MPa, suitable for direct water supply net.
• Pressure of un-pressurised valve: 0.0MPa, suitable for water load by high positioned tank or for low pressure water supply net.

Main Functions

1. Water Temperature Display: The controller accurately displays the actual water temperature of your solar water heater, ensuring you have real-time information at all times.

2. Water Level Indicator: Easily monitor the water level inside your tank with a clear display that informs you of the current status.

3. Preset Water Levels: Customise your water usage by setting the tank to refill to 50%, 80%, or 100% capacity, ensuring you have the right amount of hot water when you need it.

4. Adjustable Temperature Settings: Set your desired heating temperature anywhere from 0°C to 80°C. For energy savings, you can opt to not engage the electrical booster by setting the temperature to 0°C.

5. Automatic Water Refill: Should your tank's water level decrease, the controller automatically adds water up to your preselected level after 30 minutes, ensuring a constant supply.

6. Smart Temperature-Controlled Water Filling: The controller fills the tank with water if the temperature is above the adjustable preset range (35°C to 95°C, with a default of 60°C). If the water cools down by 5°C below the set temperature, the controller pauses filling. To prevent temperature fluctuations during use, water filling is delayed by 60 minutes and is only operational from 8:00 to 17:00.

7. Manual Water Loading: You have the option to manually initiate water loading and activate the electrical booster as needed.

8. Low-Pressure Protection: If water pressure is insufficient or stops increasing during a 60-minute period, the controller will switch to a low-pressure protection mode, indicated by a displayed symbol. The system will automatically exit this mode after 30 minutes.

9. Programmable Pipe Circulation: Set the timing for the pipe circulation pump to provide hot water instantly and increase water pressure when you open the tap, for immediate comfort and convenience.

10. Winter Pipe Insulation: The "insulation" button activates a self-heating cable to protect outdoor pipes from freezing in lower winter temperatures, operating in 40-minute cycles (10 minutes on, 30 minutes off) to prevent pipe damage.

11. Enhanced Water Pressure During Filling: If your water supply pressure is low, activate the pump to increase the pressure during filling. The pump and electrical valve are synchronized to stop simultaneously once the tank is full.

12. Collector Pipe High Temperature Safety: To prevent damage, if the tank is empty and temperatures exceed 100°C, the controller automatically locks the water loading function, indicated by error code "E4". Water loading can resume once temperatures drop back to 80°C or below, safeguarding against thermal stress and potential glass pipe breakage.

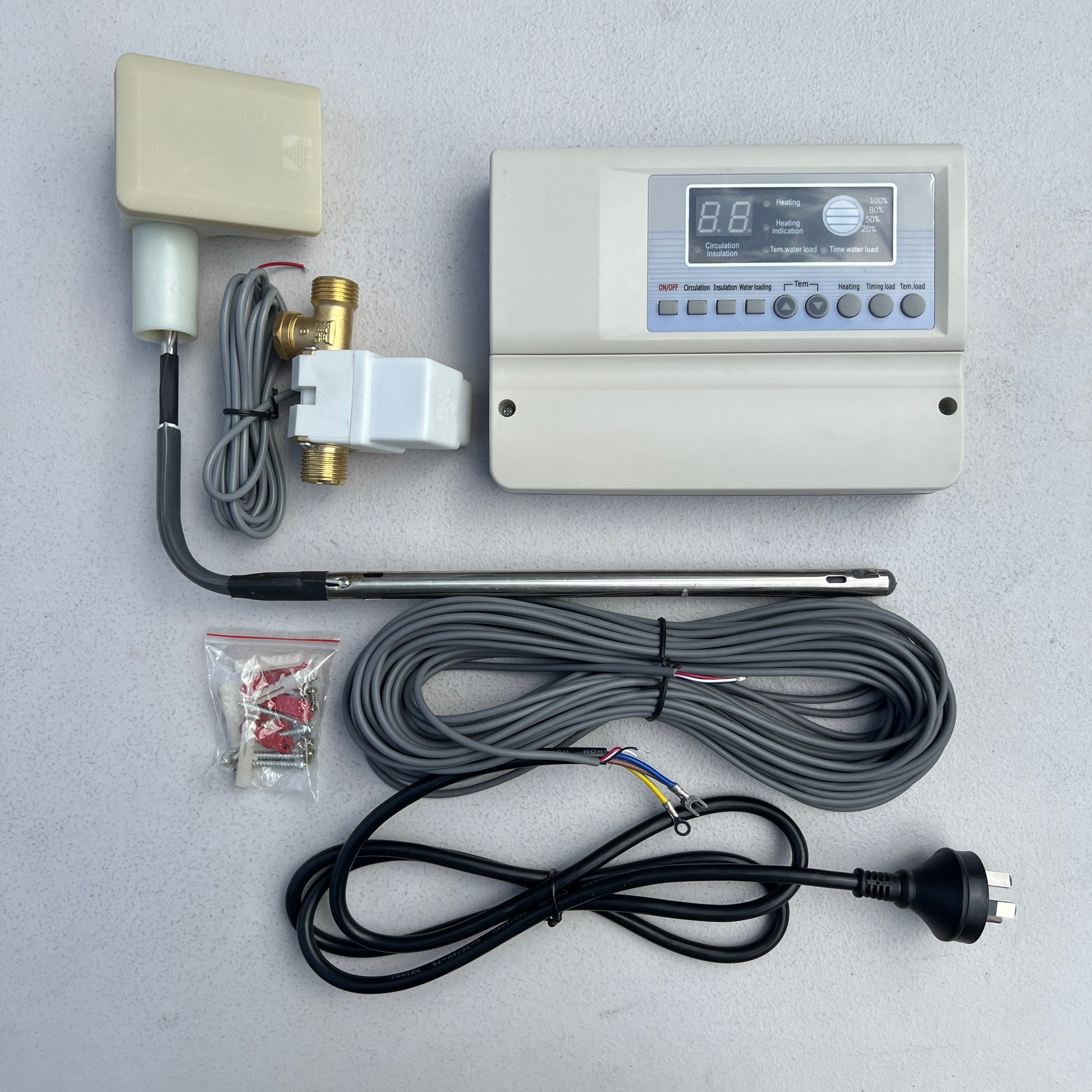

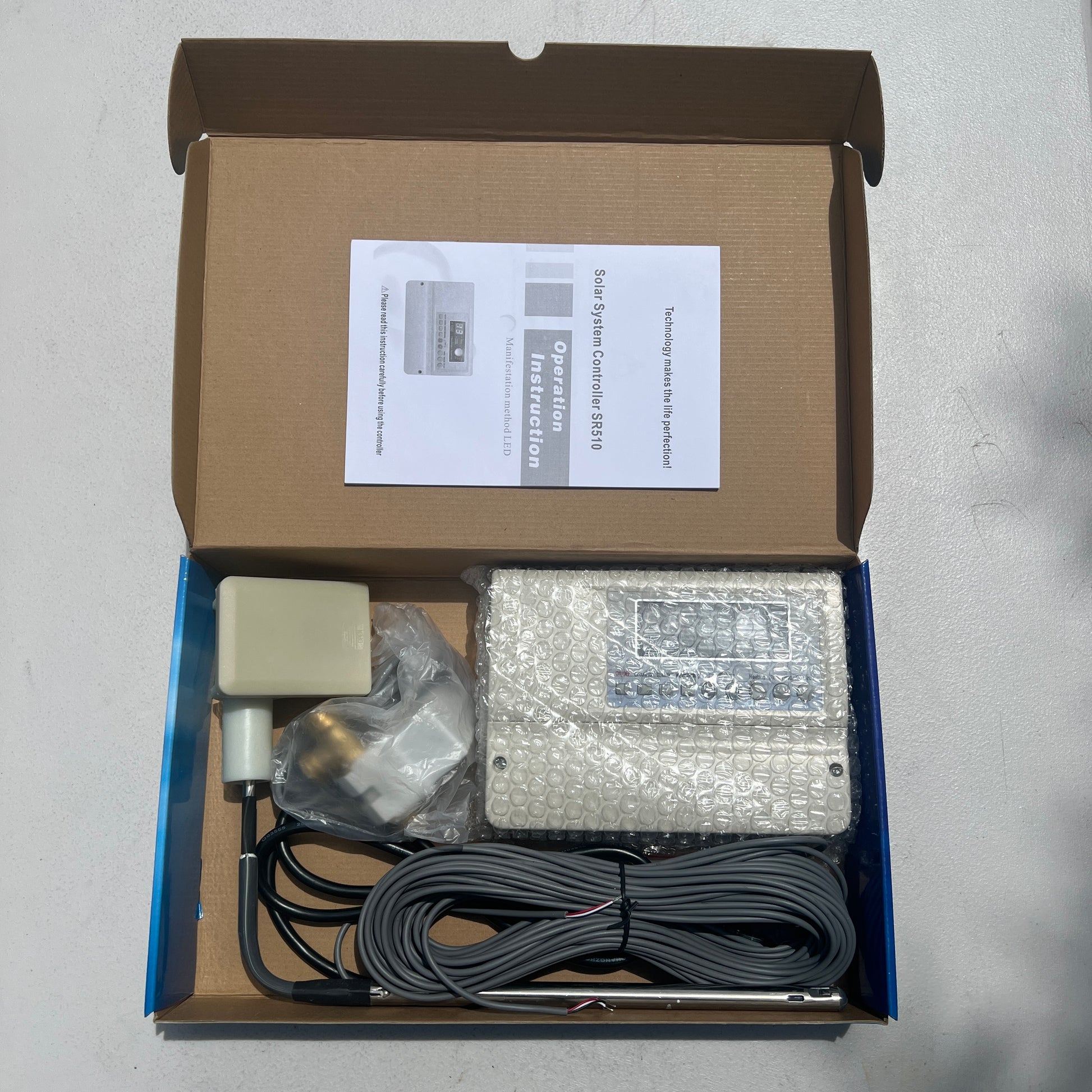

What's Included

Unbox your way to seamless solar heating management with the following items:

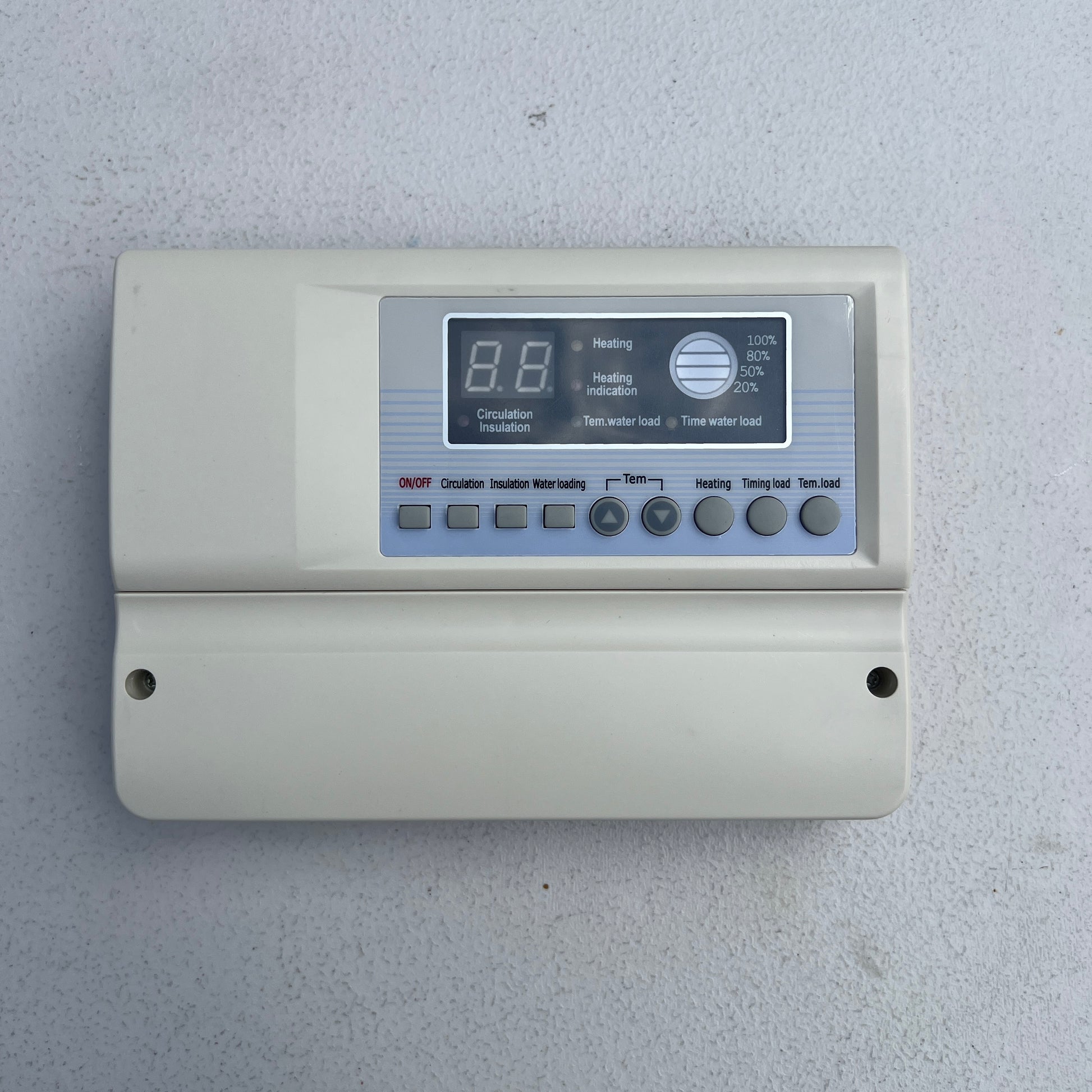

• 1 x Controller: The brain of your solar heating system, designed to keep you in control.
• 1 x Set of Installation Instructions: A step-by-step guide to get you up and running with ease.

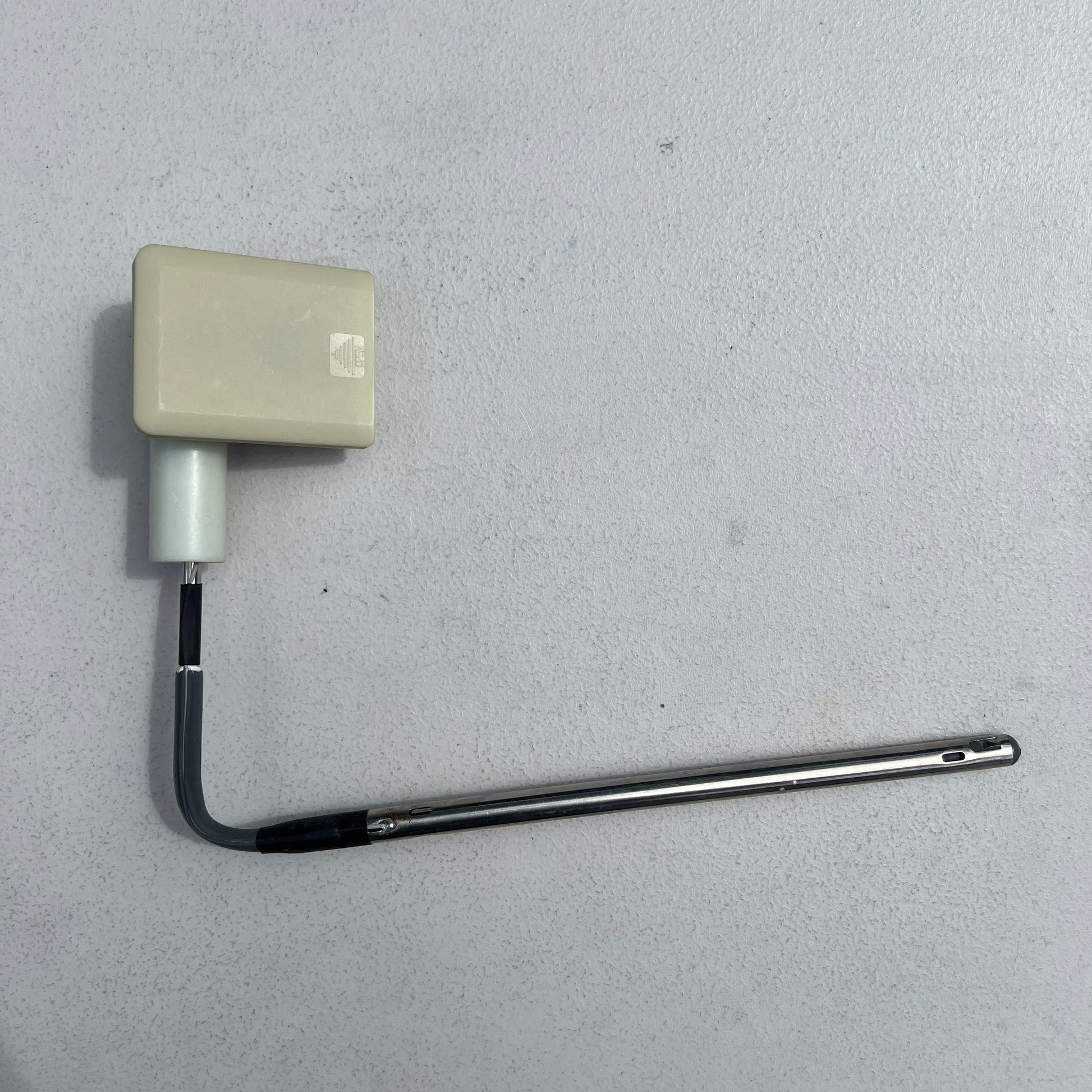

• 1 x Water Level and Temperature Sensor: Stay informed with precise readings of your system's vitals.

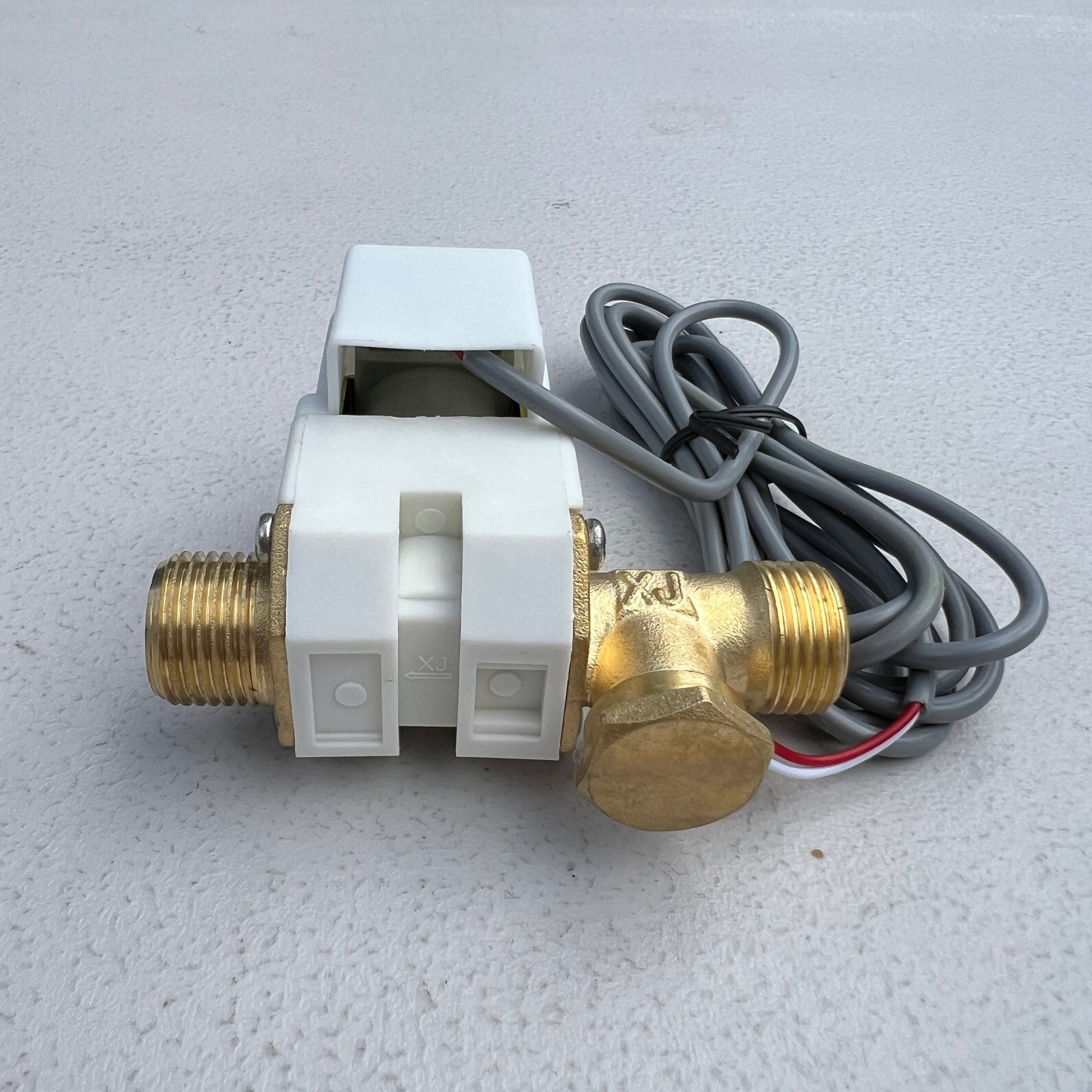

• 1 x Electromagnetic Valve: A key component for regulating your system's water flow.
• 1 x Controller Panel: All your controls in one convenient interface.

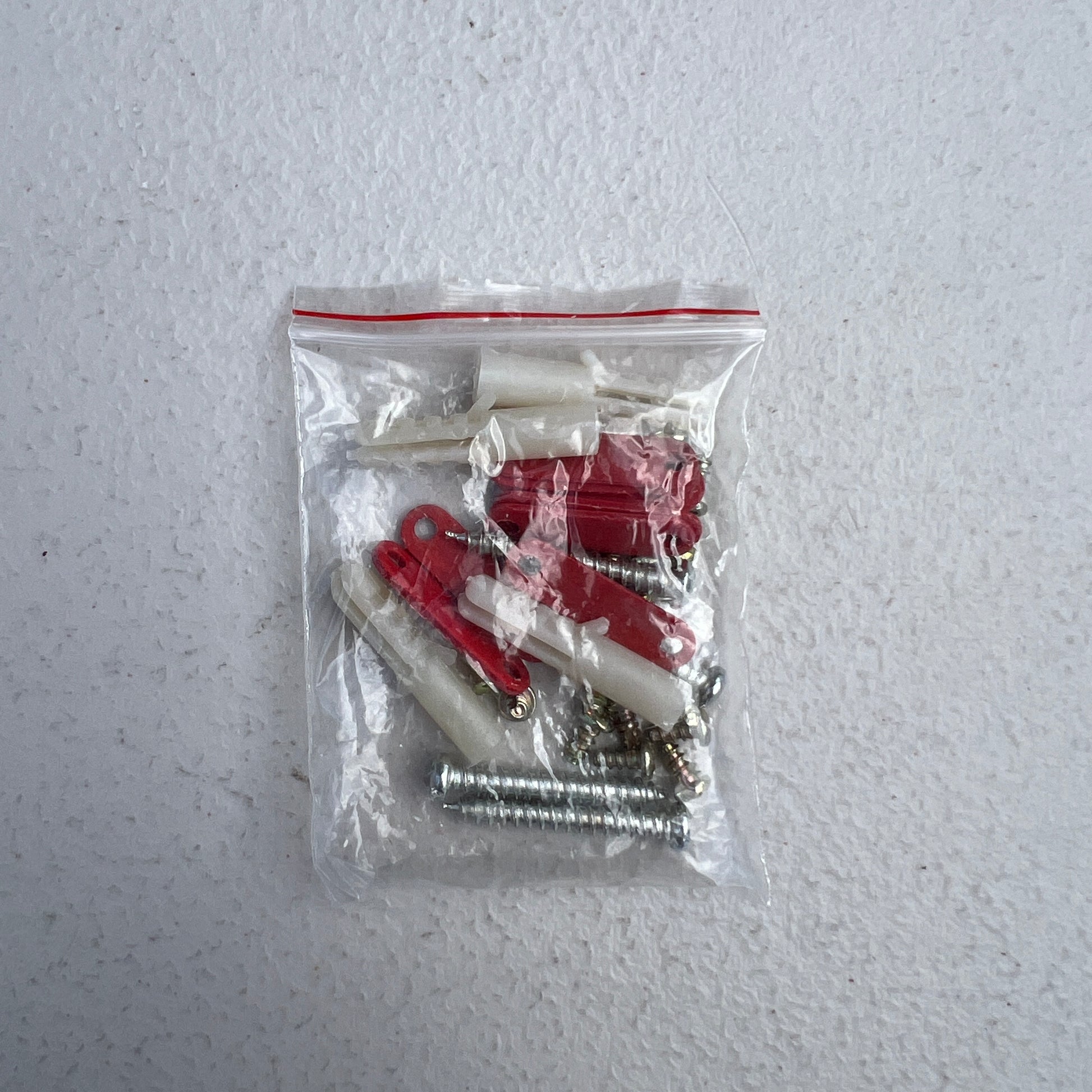

• 2 x Plastic Expansion Screws: For a secure and stable installation.
• 2 x Screws: Extra fastenings for your setup.

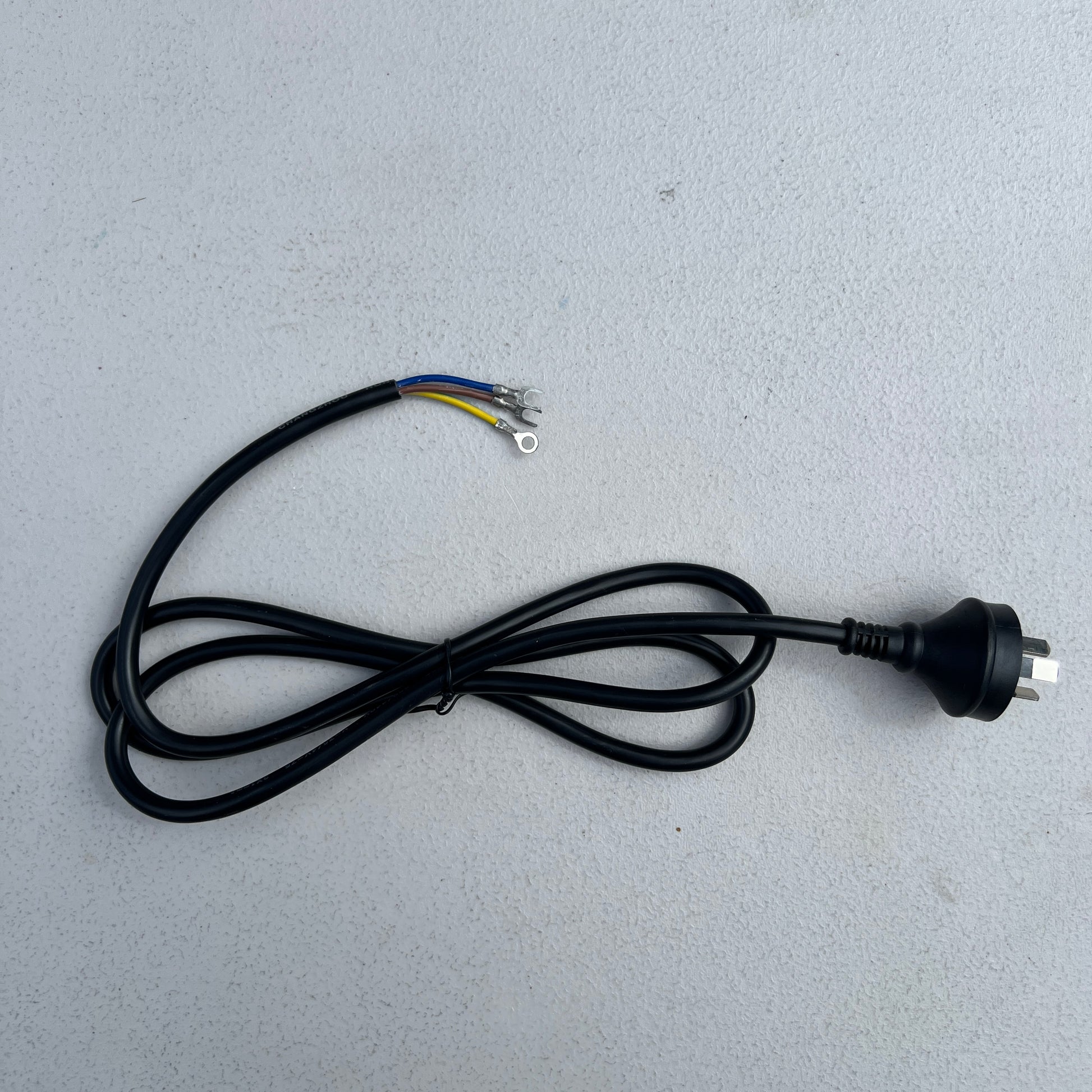

• 1 x Power Cable: Power up your system with a reliable connection.
